iuStar 100Vet Demo

$ 3,399.00

Demo model was used for a couple of hours for photography.

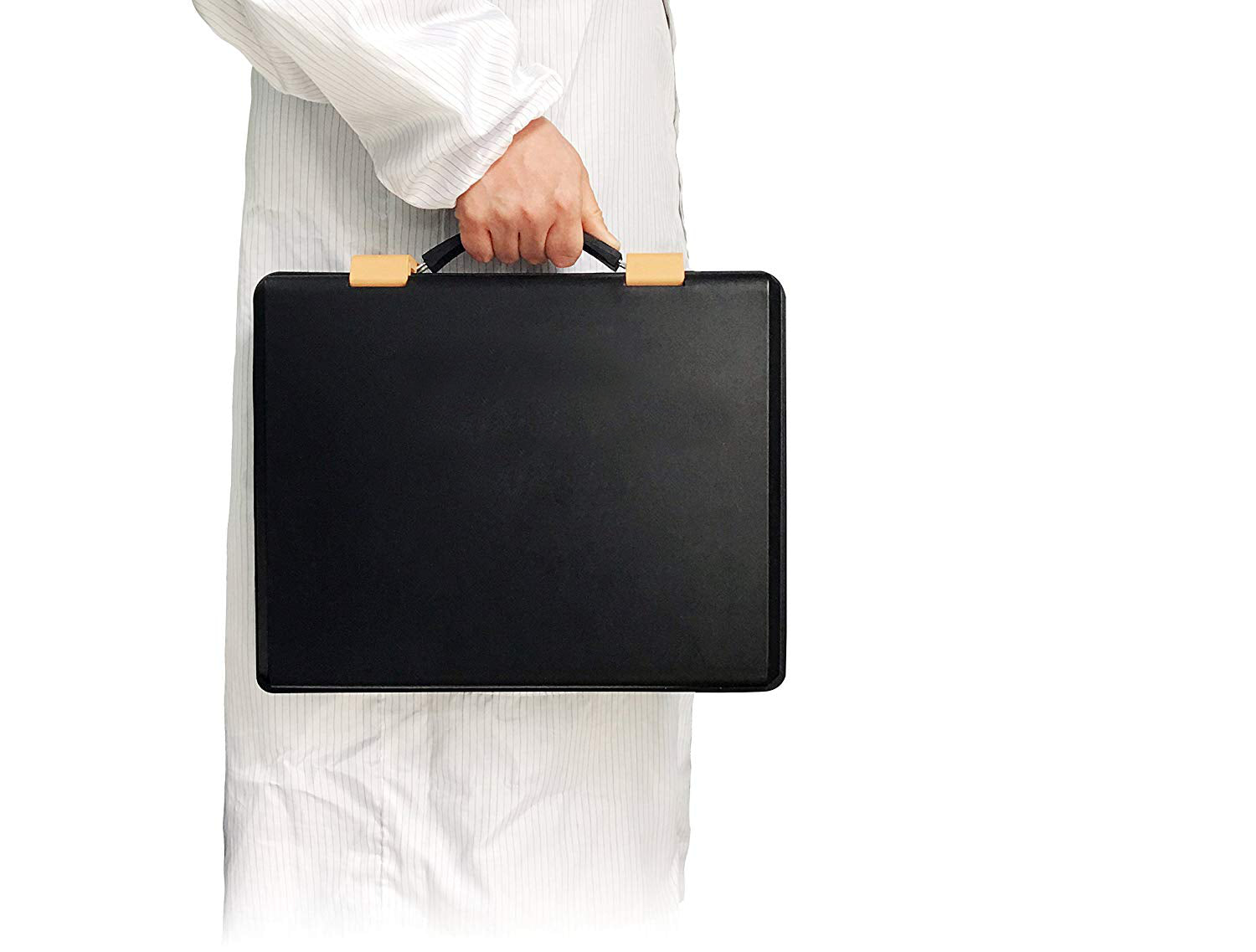

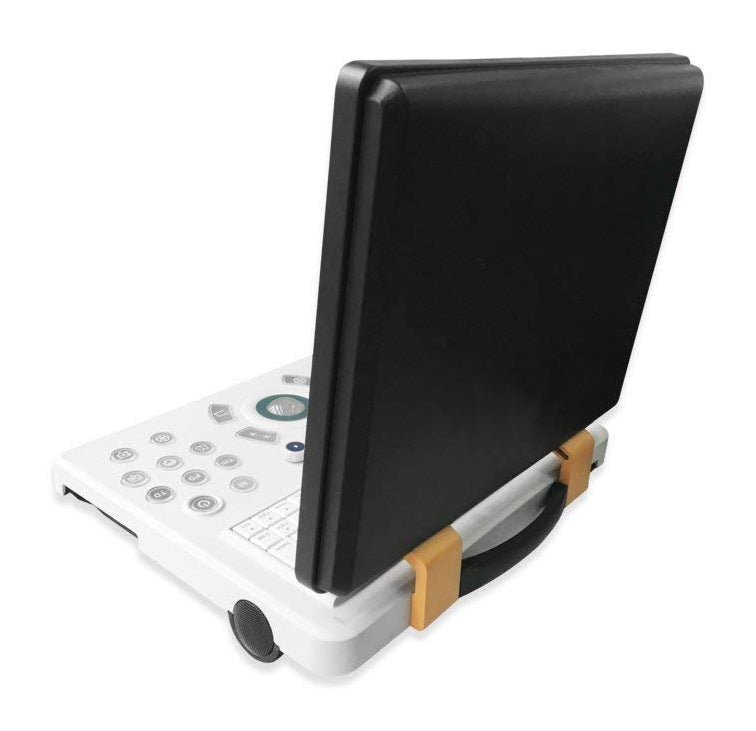

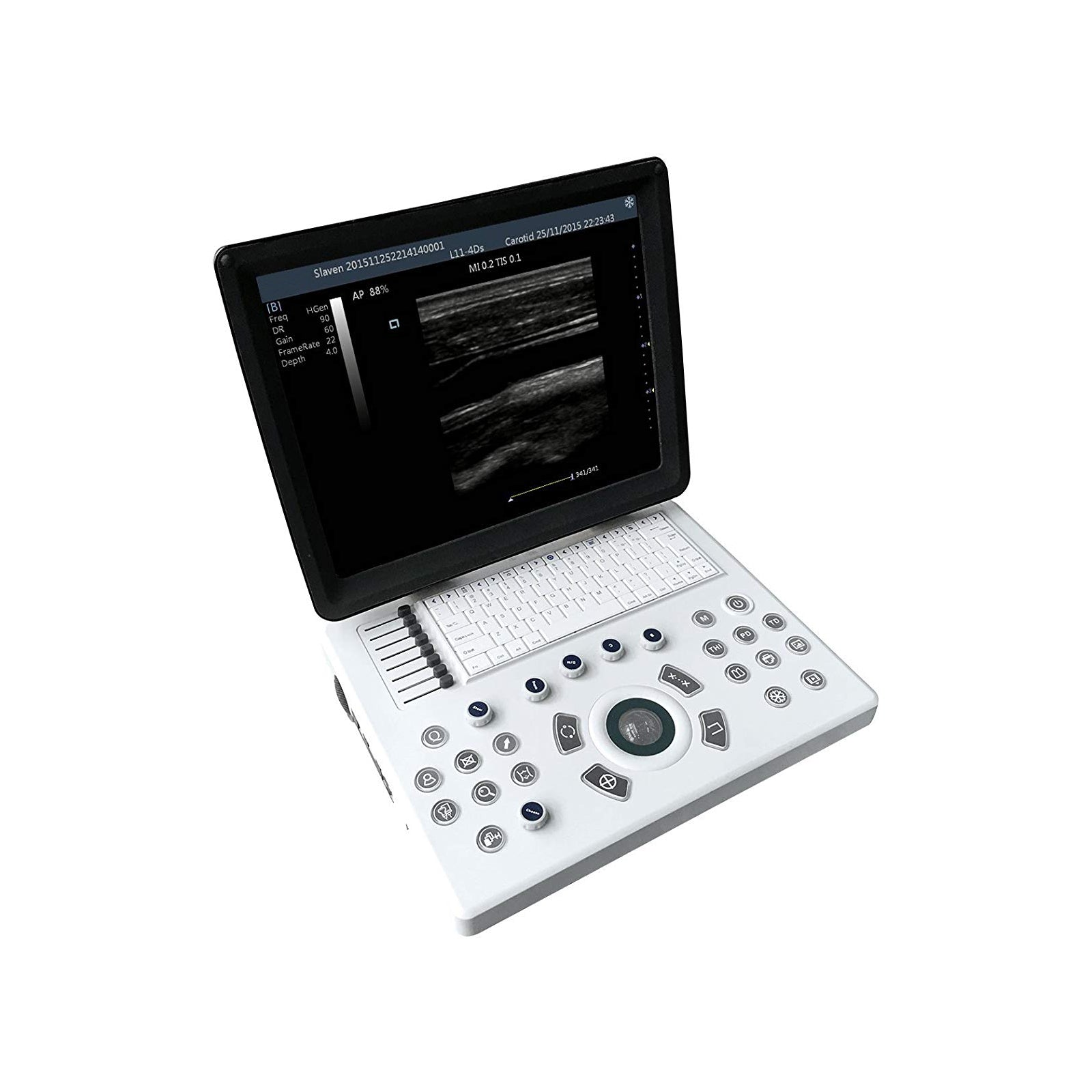

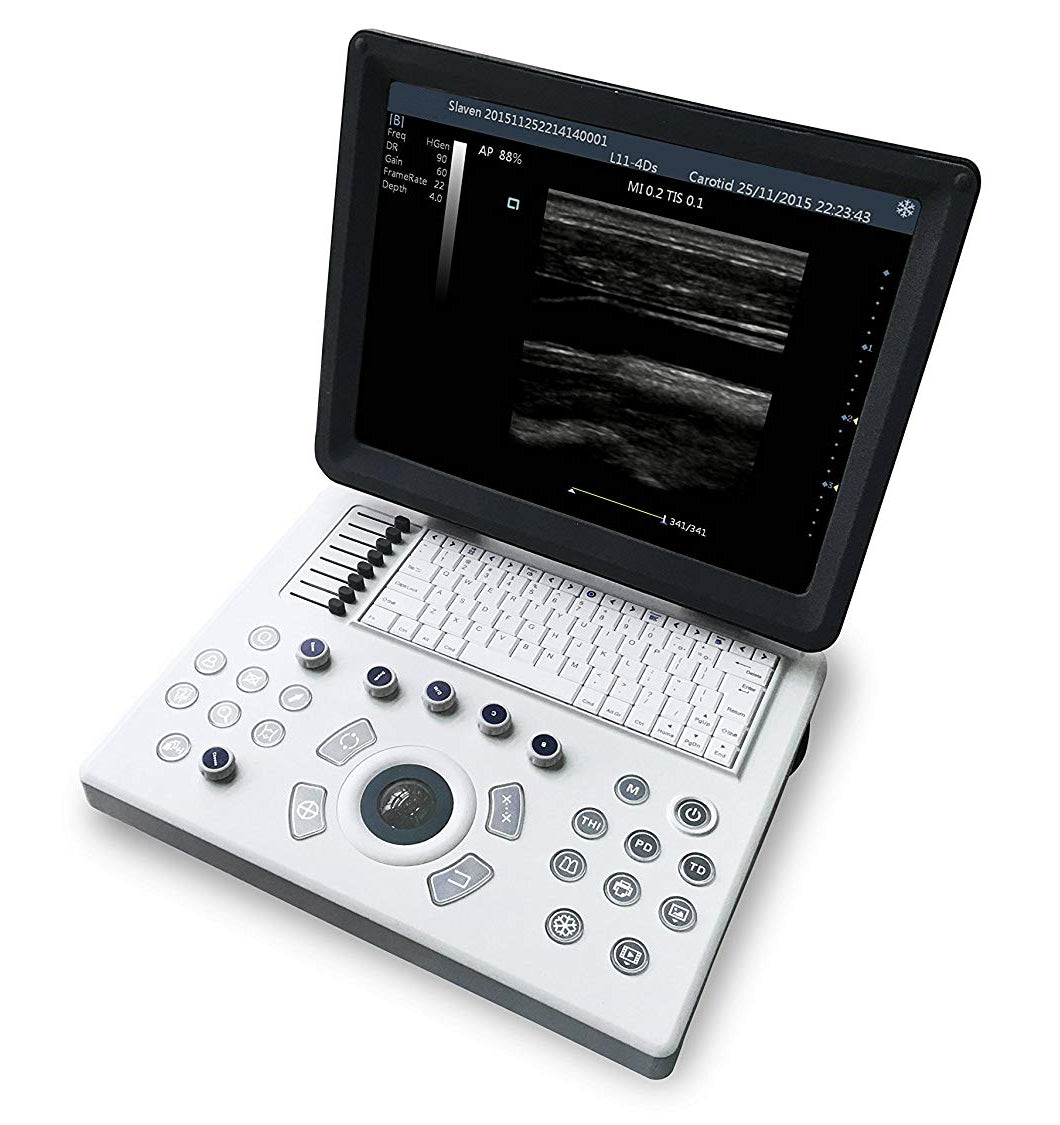

The iuStar100Vet BW is a lightweight, hand-carried black and white scanner ideal for work with small animals, equine or mixed practice.  The only portable system in the globe that can connect 3 probes at one time.  It offers advanced UniView (speckle reduction) and UniCT (spatial compounding) in  the standard configuration.  The screen on the system is 15 inch and can be angled up or down, this is a really useful function when scanning at different heights.

System Overview

Application: Abdomen, Obstetrics, Gynecology, Cardiology, Small parts, Urology, Vascular, Pediatrics, Nerve

Transducer types

  • Curved array transducer
  • Linear array transducer

Imaging modes

  • B-Mode
  • (Tissue Harmonic Imaging & Pulse Inversion Harmonic Imaging)
  • M-Mode
  • TSI (Tissue Specific Imaging)

Standard features

  • B-Mode
  • (Tissue Harmonic Imaging & Pulse Inversion Harmonic Imaging)
  • M-Mode
  • TSI (Tissue Specific Imaging)
  • B,M,2B,B/M,4B
  • UniCTTM(Spatial Compound Imaging)
  • UniViewTM(Adaptive Speckle Reduction)
  • iuScanTM (Auto Optimization)
  • Zoom
  • Expand Mode
  • 2 active probe ports
  • 32GB hard drive
  • 2 USB ports
  • Biopsy Guide

Optional features

  • DICOM
  • Video & PC printer

Physical Specification

Dimension and weight

  • Height: 90mm
  • Width: 360mm
  • Depth: 360mm
  • Weight: Approx.4.5kg (no peripherals)

Monitor

  • 15-inch high resolution LED monitor
  • Resolution: 1024 ×768

Audio speakers

  • Stereo audio speakers

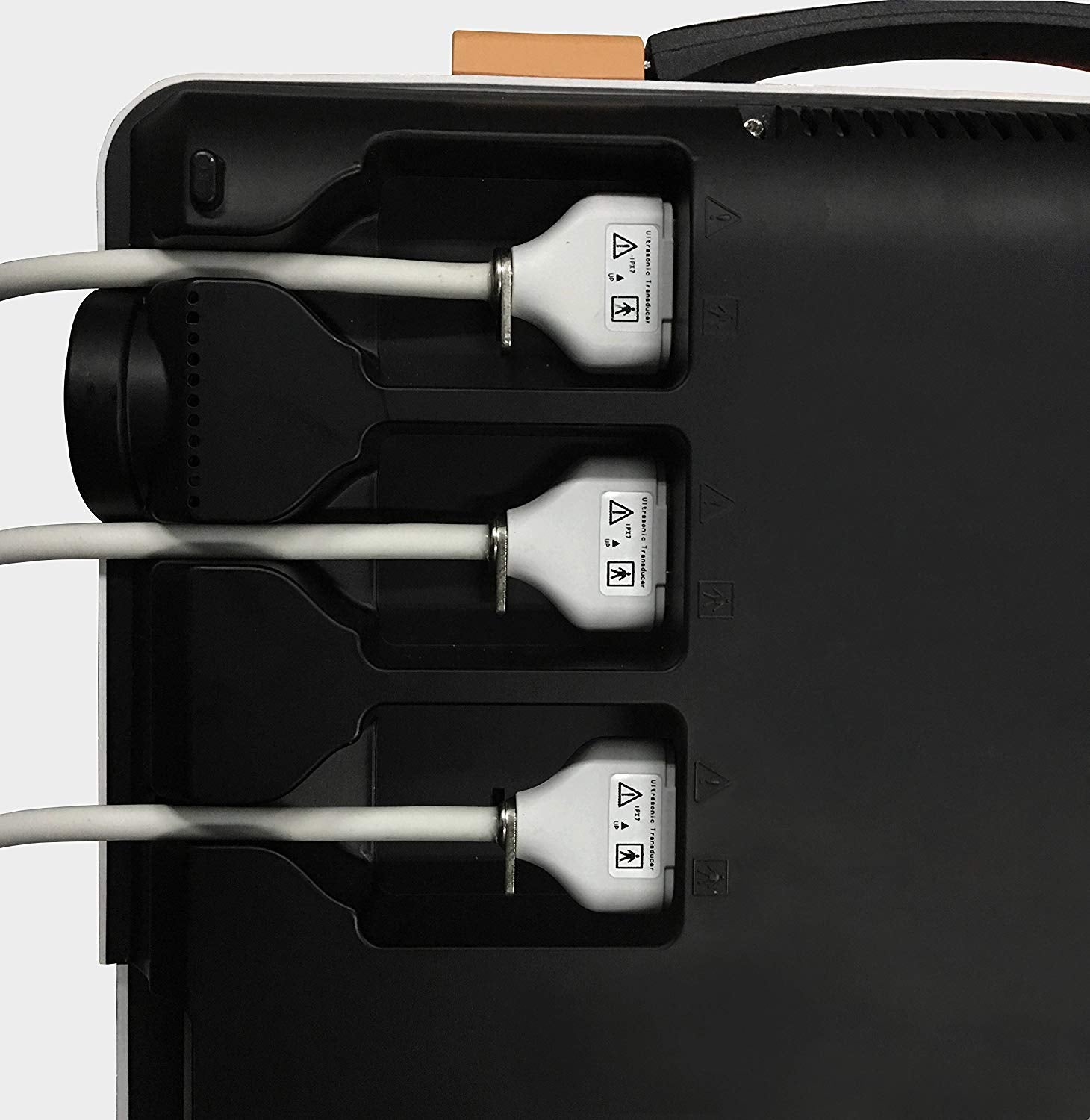

Probe port and holder

  • Probe ports: 3 active ports
  • Probe holder: 3 probe holder

Electrical Power

  • Voltage: 100 - 240V~
  • Frequency: 50/60 Hz
  • Power consumption: Approx. 100VA
  • Circuit breaker: 100 – 240V ~, 2.2A
  • Built-in Lithium battery (optional)

Operating Environment

  • Ambient temperature: 5 – 40 °C
  • Relative humidity: 35% – 75% (no condensation)
  • Atmospheric pressure: 700hPa – 1060hPa

Storage & Transportation Environment

  • Ambient temperature:  -5 – 40 °C
  • Relative humidity: 20% – 80% (no condensation)
  • Atmospheric pressure: 700hPa – 1060hPa

User Interface

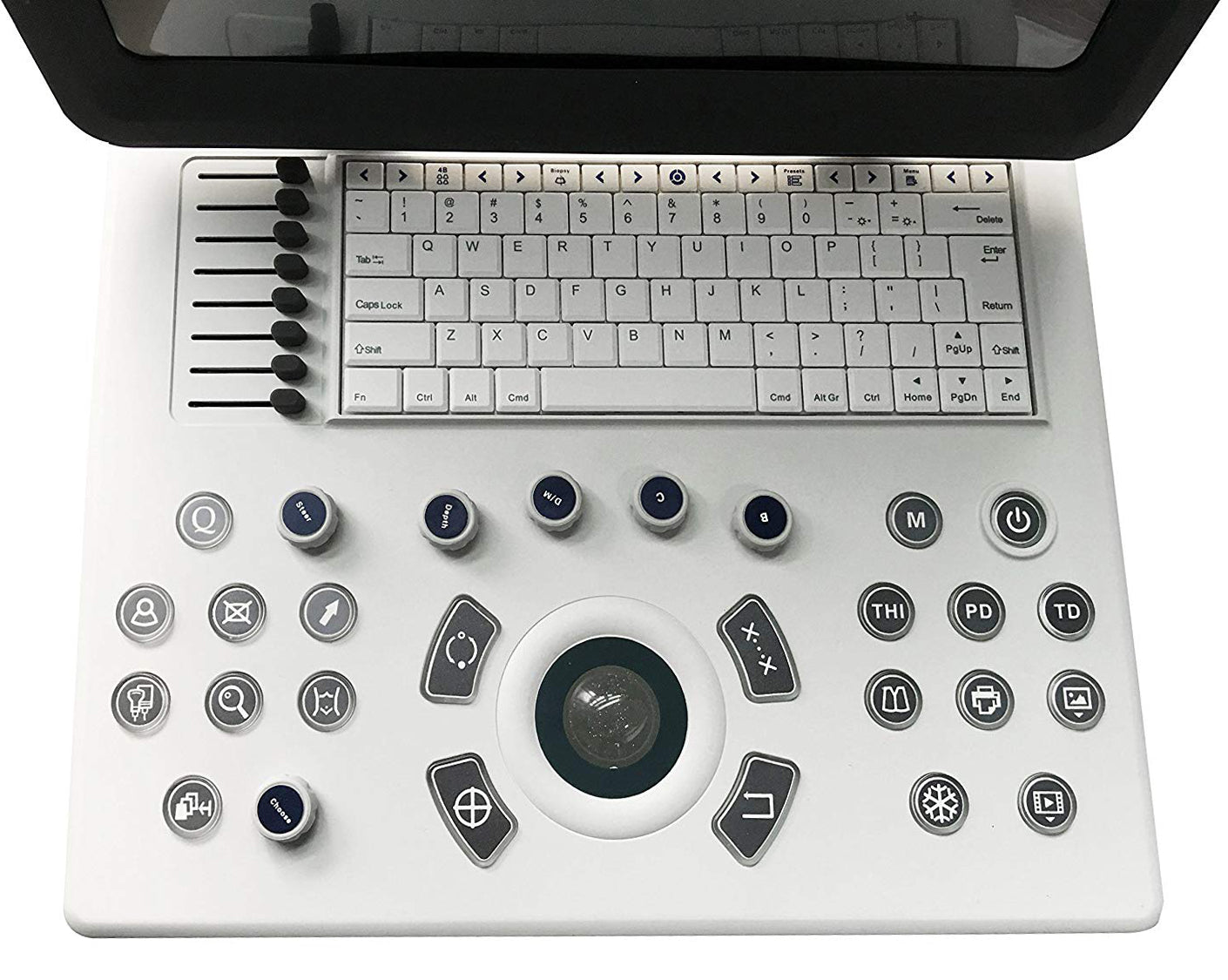

Control panel

  • User-centric control panel
  • Backlit keys ensure accurate work in the dark room
  • 8-segment TGC control
  • Full-sized, QWERTY keyboard for text input, function keys and system programming

System boot-up

  • Boot-up from complete shut-down in less than 50 sec
  • Shut-down in less than 3 sec

Comments

  • Supports text input and arrow
  • Adjustable text size

Body mark

  • More than 110 body marks for versatile application

Screen information

Common info:

  • Hospital name
  • Exam date
  • Exam time
  • Thermal and Mechanical Acoustic Output Indices
  • Gender, Age, ID, Name
  • Focus position
  • Thumbnail
  • Imaging parameters

Imaging Parameters

Overview

  • Digital Broadband beamforming
  • 16 channels
  • Image depth up to 31 cm (exam and transducer specific)

B-mode

  • Depth 31cm
  • Zoom Freeze status or real time
  • TGC 8-segment TGC control
  • Dynamic range 30-120
  • Gain
  • Persistence 4 levels (exam and transducer specific)
  • L/R flip and U/D flip
  • Gray Map 6 levels (exam and transducer specific)
  • Frequency
  • Colorize map
  • Acoustic Output Indices
  • UniviewTM
  • Adaptive Speckle Reduction
  • iuScanTM
  • Auto Optimization
  • UniCTTM: Spatial compound imaging
  • Focus number: Adjustable
  • Focus position: Adjustable
  • Focus spacing: Adjustable
  • Display formats: B, 2B, 4B
  • TSI: General/Fat/Fluid/Muscle
  • Pulse Inversion THI
  • Available on all types of transducer

Utilizing pulse inversion technologies to enhance high-resolution harmonic signals, iuStar100BW provides increased contrast and axial resolution, clearer boundaries and better visualization of structures

M-mode

  • Display formats:  Adjustable
  • Dynamic range
  • Gain
  • M sweep speed
  • Colorize map
  • Gray Map
  • Time mark
  • L/R flip and U/D flip
  • M soften

Thumbnail Image Display

  • Support Save, Send to USB

Image/cine review

  • Available in all modes
  • Cineloop image review 340 frame
  • Frame by frame manual cine loop review or auto playback with variable speed

Imaging Post processing:

  • B-mode: Gray map, Colorize map, L/R U/D flip, Zoom
  • M-mode: Gray map, Colorize map

Measurement/Analysis and Report

Generic measurements

2D-mode

  • Distance
  • Trace Length
  • Ratio (D)
  • Area:
  • Volume:

M-mode

  • Distance
  • Time
  • Slope
  • Heart Rate

Clinical option measurement package

  • Abdomen, obstetric, gynecology, cardiac, small parts

Report

  • Specific report template to the application
  • Editable value in report
  • Images are selectable

Exam Storage and Management

Exam storage

  • 32GB hard drive
  • Support connecting external storage
  • Direct digital storage of single frame and cine 2D

Exam management

  • iCentre workstation dedicated for patient exam management
  • Patient exam query/retrieve
  • Support review of current and past exam
  • New exam, Active exam
  • End exam
  • Export images as JPG/AVI format
  • Support backup/send to USB devices

Connectivity

  • Ethernet Network Connection
  • USB, serial data output (need a converter cable)
  • DICOM 3.0 basic

Transducers

Linear(L40): L11-4Ds

  • Application: Vascular, Small parts, Muscleskeletal, Carotid, Nerve, Orthopedic
  • Number of element: 80
  • Center frequency: 7.5MHz
  • Working frequencies: 5 – 10MHz

Convex(R60): C5-2Ds

  • Application: Abdomen, Obstetrics, Gynecology, Kidney, Urology
  • Number of element: 80
  • Center frequency: 3.5MHz
  • Working frequencies: 2 – 5MHz

Endocavity(R13): E10-4Cs

  • Application: Gynecology, Obstetrics, Urology
  • Number of element: 80
  • Center frequency: 6.5MHz
  • Working frequencies: 5 – 9MHz

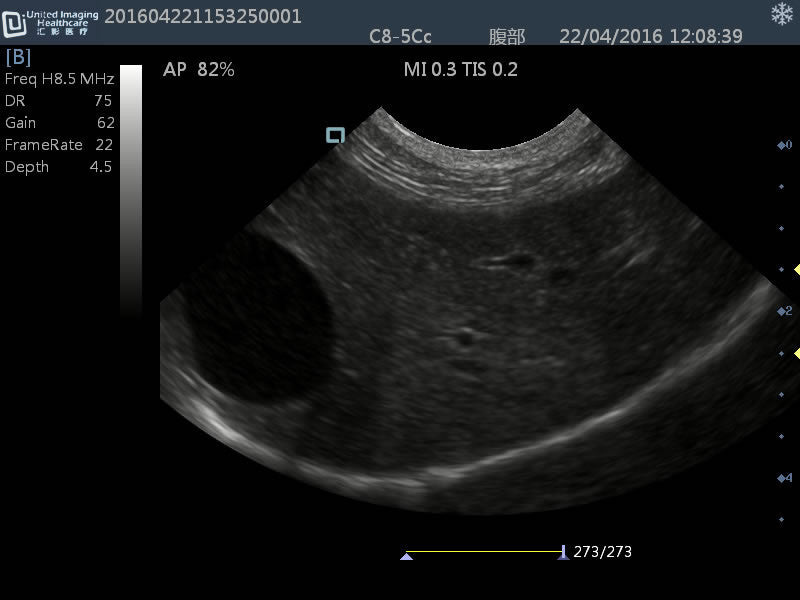

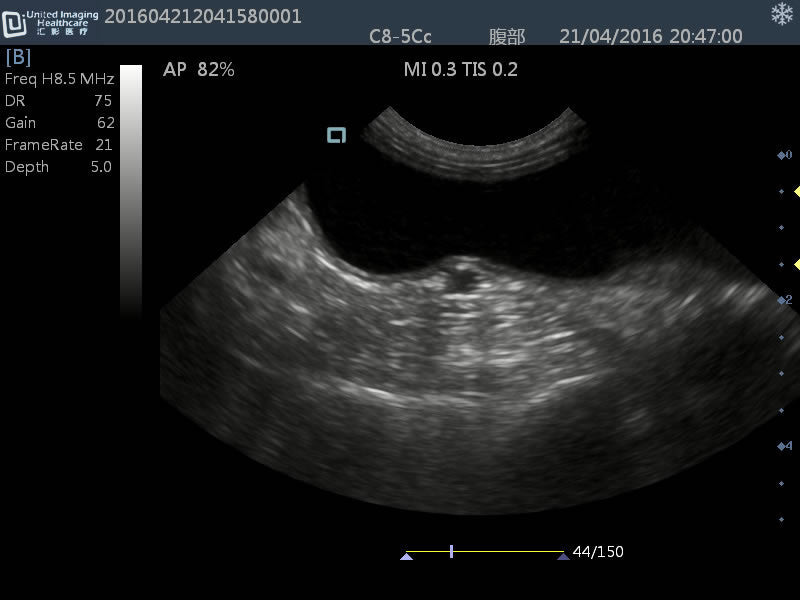

Micro-convex(R15): C8-5Cc

  • Application: General small abdomen and cardiac
  • Equine musculoskeletal and abdomens
  •  Number of element: 80
  • Center frequency: 6.5MHz
  • Working frequencies: 5 – 9MHz

Micro-convex(R20): C7-4Cc

  • Application: Medium large dog abdominal
  • Number of element: 80
  • Center frequency: 5.0MHz
  • Working frequencies: 3 – 7MHz

 Linear(L40): L11-4Fc

  • Application: Equine and bovine reproduction
  • Equine musculoskeletal
  • Fish-sexing, egg determination
  • Number of element: 80
  • Center frequency: 7.5MHz
  • Working frequencies: 5 – 10MHz

Linear(L70) L7-4Dc

  •  Application:  Equine and bovine reproduction
  •  Equine musculoskeletal
  •  Fish-sexing, egg determination
  •  Number of element: 80
  • Center frequency: 5.0MHz
  • Working frequencies: 3 – 7MHz

Peripheral Devices and Accessories (Option)

Black/white digital video printer

  • SONY UP-D897, MITSUBISHI P93DC

Black/white analog video printer

  • SONY UP-897MD, MITSUBISHI P93W-Z

Graph/text printer

  • HP Laserjet M1005; HP Laserjet P2035; HP Laserjet P1102
  • HP Laserjet P1102w; HP Laserjet P1108
  • HP Laser Jet 1536dnf MFP
  • HP Deskjet 2050; HP Deskjet D2568; HP Deskjet 1050 J410
  • HP Deskjet 2520hc

Built-in DVR

  • Built-in digital video recorder, save space and is a useful tool for education and memory
  • Max storage length each time: 30 min

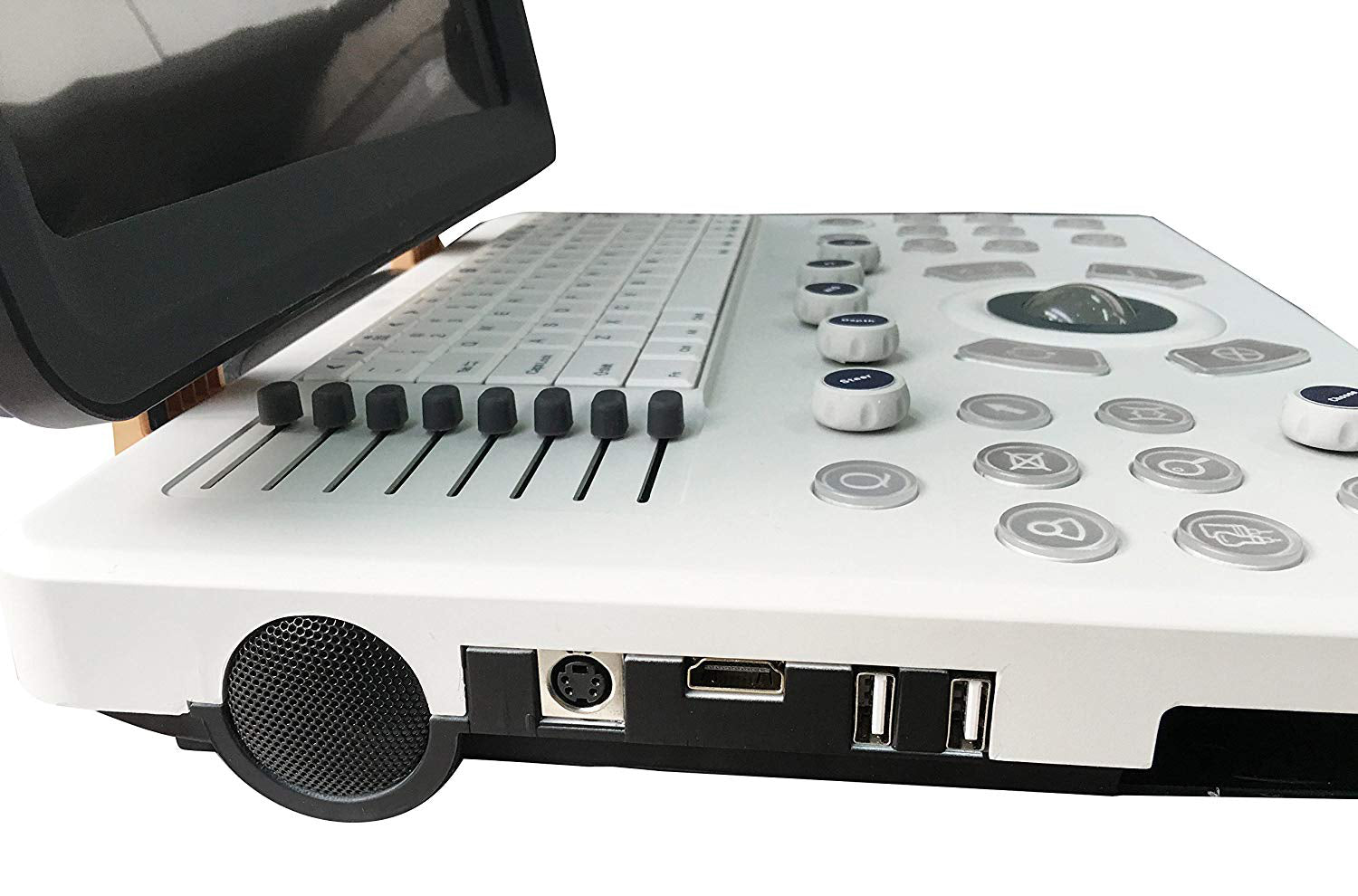

System Inputs and Outputs

Video/Audio output

  • VGA out
  • S-video out (optional)

Other input/output

  • USB
  • Ethernet
